Buying the X-T2 or the X-T20

Although these two cameras share the same lens stable, sensor and processor there are some items that do vary, when you compare specifications. However, this does not really tell the whole story, and necessarily help you decide which camera to buy.  So the following are a few general scenarios that might help focus your decision.
Budget Conscious
If you are on a budget and getting into Fujifilm equipment for the first time, the X-T20 might be a better choice than the X-T2. In this kind of a situation, one usually acquires a kit lens with the camera and often this means you do not have enough money left to buy a prime lens. This leaves you shooting with a zoom lens without the advantages of a prime lens. If you buy the X-T20 over the X-T2 kit you would saving $800 CAD. There are two possible kits with this camera and I would suggest the 18-55 f2.8-4 over the 16-50 f3.5-5.6, the former being a much faster lens. In fact, it is one of the fastest kit lenses I have seen on the market. This $800 saving could be applied toward a 55-200 f3.5-48 lens if you are committed to zoom lens shooting or could go toward a fast XF 35mm f1.4R prime.
Choosing the X-T20 over the X-T2 would mean sacrificing the dedicated ISO dial, the weather proofing, the dual high speed card slots, the three-way articulating LCD and some other items listed in the specifications list below, but this may not be a deal breaker as you also gain a few things. First, it is a smaller and lighter camera, has a built-in flash and its articulating LCD has a touchscreen instead of the three-way LCD.
As a Backup Camera
If you are thinking of a backup camera this might also be a better choice over the X-T2, as you likely have already invested in either X-Pro2 or the X-T2. This smaller camera, provided you are not in inclement weather, gives you an option of a more discreet camera for the street. It also makes an even better companion to the X-Pro2, which does not have an articulating screen, for those over the head or close to ground shots. After all age or mud sometimes makes it impossible to get down low enough to either see the LCD on the X-Pro2 or look through its viewfinder.
As an Upgrade From a DSLR
If you are moving across from a DSLR to the mirrorless world then the X-T2, in most cases, would be a better choice, as this Fujifilm camera is so much smaller than any DSLR on the market. If you are shooting with a lower end DSLR, like the Nikon D5600, the addition cost of this camera buys you an upgrade that has a lot of the features of a D500, and the image quality of the full frame D750 (unless you are shooting at very high ISOs), at a lower price and in a smaller package. So you would not only be moving across but upgrading to a feature rich camera with better image quality.

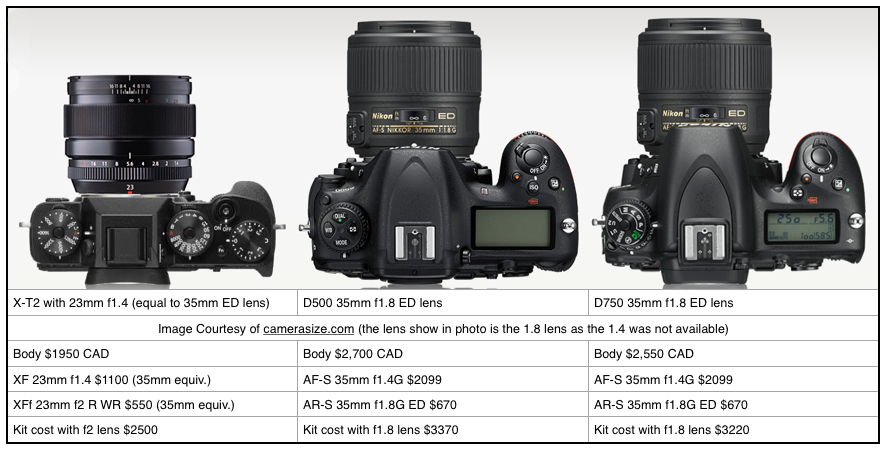

Image from camerasize.com
Like the D750 the X-T2 has a magnesium alloy body, the same autofocus choices, dual high-performance SD slots, however, the Nikon only has 51 focus points compared to the 325. The X-T2 has a three-way tilting LCD compared to the Nikon’s two-way, with it’s small size the LCD is .2mm smaller, which is not really significant. The viewfinder on the Fuji camera, however, has a stunning resolution of 2,360,000 and 100% cover unlike the Nikon. One of the big gains with the Fujifilm camera is the shutter which can be set to complete silence and with a maximum speed of 1/32000 compared to Nikon’s slapping mirror with a top speed of 1/4000. This means when you shoot with the Fuji camera on silence unlike the Nikon camera you hear absolutely nothing.
The lack of a mirror and silent electronic shutter does make for reduce the risk of vibrations when the camera is on the tripod for slower shots, and if you are trying to capture fast moving objects the Fujifilm camera’s 14 frames per second speed is more likely to produce better results than the 6.5 frames per second on the Nikon camera.
Bracketing on the Fujifilm camera is limited to three frames at a maximum increments of two stops, whereas the D750 has up to seven brackets at a maximum of two stops; with the advancements in sensors and high dynamic range processing, this difference may no longer be an important issue, and certainly I have not found this a problem since selling my Nikon equipment.
One of the secrets of shooting mirrorless over DSLR is the viewfinder shows the jpeg! In other words, before you press the shutter, you can see what you will be getting. This allows you to avoid shooting a series of shots before checking the LCD only to find your settings were all wrong. In addition to this, you can correct the jpeg’s exposure and see the adjustment results in the viewfinder prior to taking the shot.
Finally, there is the replacement of a digital read out on the Nikon cameras with real dials, especially on the X-T2 where it has a separate dial for ISO and Speed, with the aperture settings on the lenses. Although this appears at first to be a “retro” look and perhaps cosmetic, it does, in fact, make the camera easier to operate and a pleasure to use. The X-T2 as a result quickly melts into the background as you concentrate on your photography.

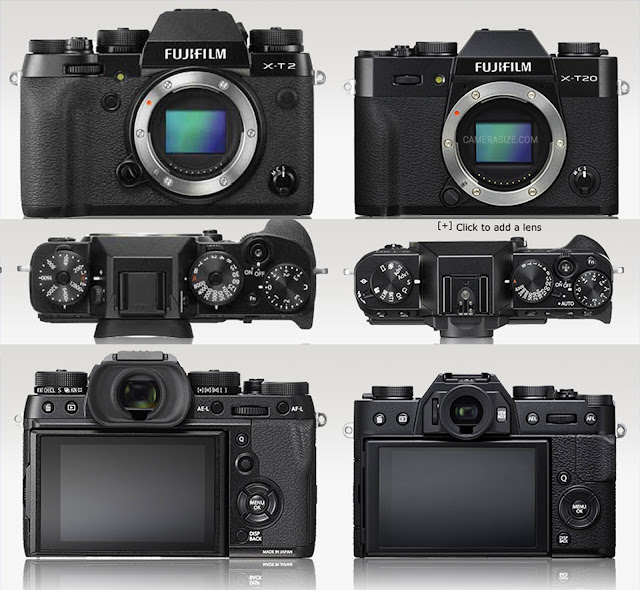

Comparing X-T2 Specification to the X-T20
camerasize.com
Model and Price
FUJIFILM X-T2 $1950 CAD
(with 18-55 f.8-4OIS lens $2400)
FUJIFILM X-T20 $1200 CAD
(with 18-55 f.8-4OIS lens $1600)
Effective pixels
24.3 million pixels
Image sensor
23.6mm x 15.6mm(APS-C)X-Trans CMOS III with primary colour filter.
Sensor Cleaning system

Ultra Sonic Vibration

23.6mm x 15.6mm(APS-C)X-Trans CMOS III with primary colour filter.
Sensor Cleaning system

Ultra Sonic Vibration

Storage media SD Card (-2G) / SDHC Card (-32G) / SDXC Card (-256G) UHS-I / UHS-II SD Card (-2G) / SDHC Card (-32G) / SDXC Card (-256G) UHS-I
File format
Still image: JPEG (Exif Ver.2.3), RAW: 14bit RAW (RAF original format), RAW+JPEG
Movie Mod MOD: Movie Video Compression: MPEG-4 AVC / H.264 Audio: Linear PCM/ Stereo sound 48KHz sampling
Number of recorded pixels
L: (3:2) 6000 x 4000 / (16:9) 6000 x 3376 / (1:1) 4000 x 4000
M: (3:2) 4240 x 2832 / (16:9) 4240 x 2384 / (1:1) 2832 x 2832
S: (3:2) 3008 x 2000 / (16:9) 3008 x 1688 / (1:1) 2000 x 2000
Lens mount
FUJIFILM X mount
Sensitivity
Standard Output Sensitivity: AUTO1 / AUTO2 / AUTO3 (up to ISO12800) / ISO200 to 12800(1/3 step)
Extended output sensitivity: ISO100 / 25600 / 51200
Exposure control
TTL 256-zone metering, Multi / Spot / Average / Center Weighted
Exposure mode
P(Program AE), A (Aperture Priority AE), S (Shutter Speed Priority AE), M (Manual Exposure)
Exposure comp.
-5.0EV – +5.0EV, 1/3EV step (movie recording : -2.0EV – +2.0EV)
Image Stabilizer
Only with OIS type lenses
Shutter type
Focal Plane Shutter
Shutter speed
Mechanical Shutter
4 sec. to 1/8000 sec.(P mode), 30 sec. to 1/8000 sec.(All modes)
Bulb mode(up to 60 min), TIME : 30 sec. to 1/8000 sec.
Electronic Shutter*3
30 sec. to 1/32000 sec.(P / A / S / M modes)
Bulb mode : 1 sec. fixed, TIME : 30 sec to 1/32000sec.
Mechanical + Electronic Shutter
4 sec. to 1/32000 sec.(P mode), 30 sec. to 1/32000 sec.(All modes)
Bulb mode(up to 60 min), TIME : 30 sec. to 1/32000 sec.
Synchronized shutter speed for flash

1/250 sec. or slower

Mechanical Shutter
4 sec. to 1/4000 sec.(P mode), 30 sec. to 1/4000 sec.(All modes)
Bulb mode(up to 60 min), TIME : 30 sec. to 1/4000 sec.
Electronic Shutter*3
4 sec. to 1/4000 sec.(P mode)
1 sec. to 1/32000 sec. (P / A / S / M modes)
Bulb mode : 1 sec. fixed, TIME : 1sec to 1/32000sec.
Mechanical + Electronic Shutter
4 sec. to 1/32000 sec.(P mode), 30 sec. to 1/32000 sec.(All modes)
Bulb mode(up to 60 min), TIME : 30 sec. to 1/32000 sec.
Synchronized shutter speed for flash

1/180 sec. or slower

Continuous shooting
Approx. 14.0 fps [Only Electronic Shutter](JPEG: 42 frames, Lossless compression RAW: 28 frames, Uncompressed RAW: 25 frames)
Approx. 11.0 fps [Only with Electronic Shutter] (JPEG: 73 frames, Lossless compression RAW: 30 frames, Uncompressed RAW: 27 frames)
Approx. 8.0fps (JPEG: 83 frames, Lossless compression RAW: 33 frames, Uncompressed RAW: 27 frames)
Approx. 5.0fps (JPEG: endless, Lossless Compression RAW: 39 frames, Uncompressed RAW: 30 frames) * recordable frames depends on recording media
* Speed of continuous shooting depends on shooting environment and shooting frames
Approx. 14.0 fps [Only Electronic Shutter](JPEG: 42 frames Lossless compression RAW: 23 frame Uncompressed RAW: 22 frames)
Approx. 11.0 fps [Only Electronic Shutter] (JPEG: 56 frames Lossless compression RAW: 24 frame Uncompressed RAW: 23 frames)
Approx. 8.0 fps (JPEG: 62 frames Lossless compression RAW: 25 frame Uncompressed RAW: 23 frames)
Approx. 5.0 fps (JPEG: 68 frames Lossless compression RAW: 28 frame Uncompressed RAW: 25 frames)
Approx. 4.0 fps (JPEG: 73 frames Lossless compression RAW: 29 frame Uncompressed RAW: 25 frames)
Approx. 3.0 fps (JPEG: 81 frames Lossless compression RAW: 32 frame Uncompressed RAW: 27 frames) * recordable frames depends on recording media
* Speed of continuous shooting depends on shooting environment and shooting frames
Auto bracketing
AE Bracketing(±2EV / ±5/3EV / ±4/3EV / ±1EV / ±2/3EV / ±1/3EV)
Film simulation bracketing(Any 3 types of film simulation selectable)
Dynamic Range Bracketing (100% · 200% · 400%)
ISO sensitivity Bracketing (±1/3EV / ±2/3EV / ±1EV)
White Balance Bracketing (±1 / ±2 / ±3)
Focus
Mode: Single AF / Continuous AF / MF
type: Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
AF frame selection: Single point AF: EVF / LCD: 13×7 / 25×13 (Changeable size of AF frame among 5 types),
Zone AF: 3×3 / 5×5 / 7×7 from 91 areas on 13×7 grid,
Wide/Tracking AF: (up to 18 area) * AF-S : Wide
White balance
Automatic Scene recognition, Custom1~3, Color temperature(2500K~10000K)
Preset: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White),Incandescent light, Underwater
Self-timer
10sec. / 2sec.
Interval timer
Yes (Setting : Interval, Number of shots, Starting time)
Flash modes
FLASH MODE: TTL (FLASH AUTO / STANDARD / SLOW SYNC.) / MANUAL / COMMANDER / OFF (When EF-X8 is set) SYNC. MODE: 1ST CURTAIN / 2ND CURTAIN / AUTO FP(HSS)
Hot shoe
Yes (Dedicated TTL Flash compatible)
Viewfinder
0.5 inch approx. 2.36 millions dots OLED Color Viewfinder Coverage of viewing area vs. capturing area: approx. 100%
Eyepoint: approx. 23mm (from the rear end of the camera’s eyepiece) Diopter adjustment: -4~+2m-1
Magnification: 0.77x with 50mm lens (35mm equivalent) at infinity and diopter set to -1.0m-1
Diagonal angle of view: approx. 38° (Horizontal angle of view: approx. 31° )

Built-in eye sensor

0.39-in., approx. 2,360K-dot OLED color viewfinder, Coverage of viewing area vs. capturing area : approx. 100%
Eye point : approx. 17.5mm ( from the rear end of the camera’s eyepiece), Diopter adjustment : -4m ~ +2m-1(dpt)
Magnification : 0.62x with 50mm lens(35mm format equivalent) at infinity and diopter set to -1m-1

Diagonal angle of view : approx. 30°( Horizontal angle of view : approx. 25°) Built-in eye sensor

LCD monitor 3.0 inch, aspect ratio 3:2, approx. 1,040K-dot, 3 way tilt 3.0-inch, aspect ratio 3:2, approx. 1040K-dot 2 way tilt
Movie recording
[4K (3840×2160)] 29.97p / 25p / 24p / 23.98p 100Mbps up to approx. 10min.
[Full HD (1920×1080)] 59.94p / 50p / 29.97p / 25p / 24p / 23.98p 100Mbps up to approx. 15 min.
[HD (1280×720)] 59.94p / 50p / 29.97p / 25p / 24p / 23.98p 50Mbps up to approx. 30min.
Film Simulations
15 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, CLASSIC CHROME, PRO Neg.Hi, PRO Neg.Std, Black & White, Black & White+Ye Filter, Black & White+R Filter, Black & White+G Filter, Sepia, ACROS,ACROS+Ye Filter, ACROS+R Filter, ACROS+G Filter)
Dynamic range
AUTO, 100%, 200%, 400%
Advanced filter
Toy camera, Miniature, Pop color, High-key, Low-key, Dynamic tone, Soft focus,Partial color (Red / Orange / Yellow / Green / Blue / Purple)
Wireless transmitter
Standard: IEEE 802.11b / g / n (standard wireless protocol)
Encryption, WEP / WPA / WPA2 mixed mode
Access mode: Infrastructure
Wireless function
Geotagging, Wireless communication (Image transfer), View & Obtain Images, Remote camera shooting,PC Autosave, instax printer print
Terminal
Digital interface
USB3.0 (High-Speed) / micro USB terminal * connectable with Remote Release RR-90 (sold separately) HDMI output
HDMI micro connector (Type D)
Others
ø3.5mm, stereo mini connector (Microphone) / ø2.5mm, Remote Release Connector

Hot shoe, Mechanical release shutter button

Digital interface
USB2.0 (High-Speed) / micro USB terminal * connectable with Remote Release RR-90 (sold separately) HDMI output
HDMI micro connector (Type D)
Other

Φ2.5mm, stereo mini connector Microphone

Power supply Approx. 340 still frames using XF35mm F1.4 R set to LCD monitor on. Battery life in movie capture with Face off in 4K: approx. 40 min., full HD approx. 50min.
Approx. 350 still frames using XF35mm F1.4 R set to LCD monitor on. Battery life in movie capture with Face off in 4K: approx. 50 min., full HD approx. 60min.
Dimensions 132.5mm (W) x 91.8mm (H) x 49.2mm (D) (minimum depth 35.4mm) 118.4mm (W) x 82.8mm (H) x 41.4mm (D) / 4.66in. (W) x 3.26in. (H) x 1.63in. (D) (Minimum Depth : 31.9mm / 1.3 in.)
Operating Temp. -10°C – +40°C 0°C – 40°C
Weight Approx. 507g with battery and SD card Approx. 383g with battery and SD card
Operating Humidity
10 – 80% (no condensation)
Starting time Approx 0.3sec. Approx 0.4sec.
Accessories included
Li-ion battery NP-W126S
Battery charger BC-W126
Shoe-mount flash unit EF-X8
Shoulder strap
Body cap
Strap clip
Protective cover
Clip attaching tool
Hot shoe cover
Vertical Power Booster Grip connector cover
Sync terminal cover
Owner’s manual

Warranty+D66

Li-ion battery NP-W126S
Battery charger BC-W126
Body cap
Shoulder strap
Metal strap clip
Protective cover
Clip attaching tool

Owner’s manual
